Technical parameter:

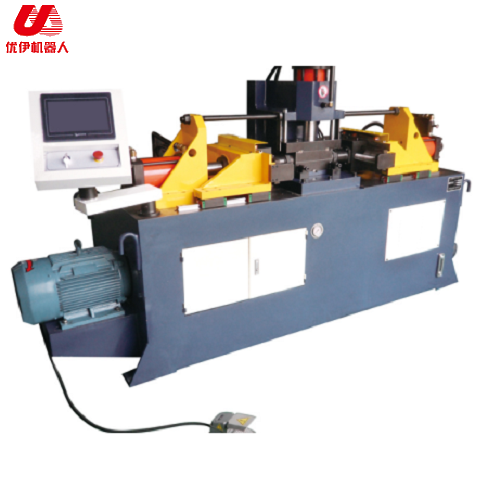

Enlarged TM80A (servo die change)

Processing diameter (iron pipe):  φ60mm

Forming length: 120mm

Rated thrust of main cylinder: 19-21T

Clamping cylinder specifications: φ130*75mm

Rated thrust of clamping cylinder: 18.9T

Servo mold change motor power: 1KW

Ball screw: 1R40-5T4-FSI

Hydraulic pump displacement: PV2R2-47F

Oil pump motor power: Y160M-4 -15KW

Fixed work stress: 14MPa

Machine dimensions: 3000×1050×1600mm

Performance characteristics:

A It adopts digital man-machine interface control, touch screen, easy to control, easy to learn, and perfect function;

B Using servo motor control to switch processing molds, with high operating accuracy;

C Using PLC control unit, the performance of the whole machine is stable, the multi-station servo mold changing function is suitable for multiple mold changing tube end forming processing, and the forming effect of the tube end is stable;

D The movement mechanism is propelled by high-precision ball screw servo motor, which is stable and reliable with high precision;

E Various tube End-forming molds can be prepared according to customer needs, and a set of molds are provided free of charge. It can complete various tube end forming and modeling such as shrinking tube, expanding tube, and folding;

F Reinforced equipment hydraulic cooling system to ensure that the machine can work stably and reliably for a long time
