Auto Feeding Machine to Pipe Bender

Auto Feeding Machine to Pipe Bender

Auto Feeding Machine to Pipe Bender

UE ROBOTS

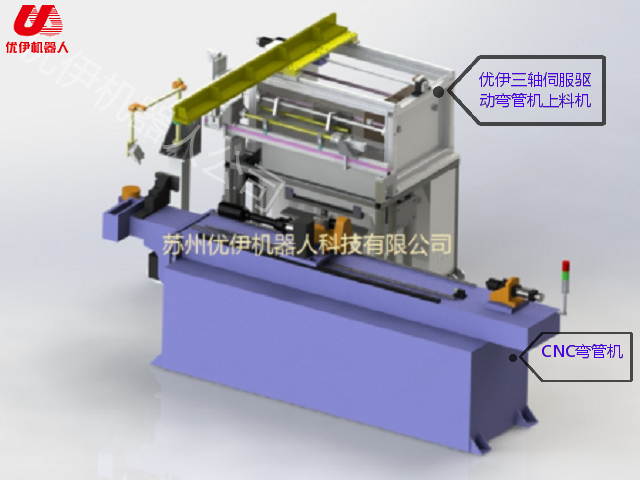

3-axis servo-driven pipe bender automatic feeding machine main indicators:

A) The main indicators of the automatic feeding machine of the three-axis servo-driven pipe bender:

B) Tube length: 80-1000, manual batch feeding to the feeding box of the special feeding machine, 250 pieces of pipe fittings can be placed at a time, depending on the pipe diameter, suitable for high-precision feeding of small pipe fittings;

C) Pipe diameter: 10-38;

D) Three-axis servo truss manipulator is fed to the pipe bender;

E) The pipe bender can be selected from mainstream brands, new pipe benders such as Hehe, Qiaosheng, and domestic pipe benders or pipe benders in use. The working state of the pipe bender requires stable operation;

F) The automatic cylinder manipulator (also can be equipped with a four-axis simple industrial robot) discharges to the bin or rack;

G) Optional configuration of weld detection unit length: 80-1000, manual batch feeding to the feeding machine bin, 250 pipe fittings can be placed at a time, depending on the pipe diameter, suitable for high-precision feeding of small pipe fittings;

H) Optional welding seam detection unit;

三轴伺服驱动弯管机自动上料机主要指标：

A）管三轴伺服驱动弯管机自动上料机主要指标：

B）管长：80-1000，人工整批上料至上料专机料箱，一次可放250根管件，视管径大小，适合小管件高精度上料；

C）管径：10-38；

D）三轴伺服桁架机械臂送料至弯管机；

E）弯管机可选主流品牌，和和、乔升、国产弯管机等新弯管机或正在使用的弯管机，弯管机工作状态要求运行状态稳定；

F）自动气缸机械臂（也可以配四轴简易工业机器人）下料至料箱或料架；

G）可选择配置焊缝检测单元长：80-1000，人工整批上料至上料专机料箱，一次可放250根管件，视管径大小，适合小管件高精度上料；

H）可选择配置焊缝检测单元；
