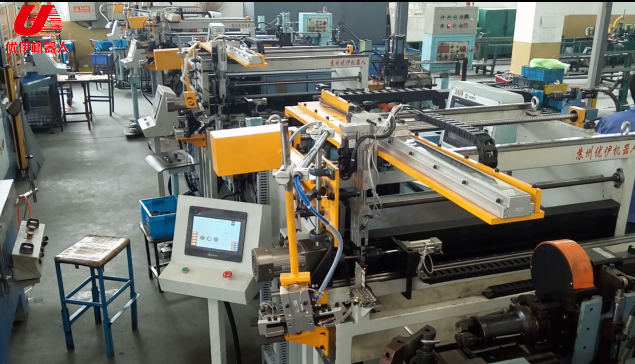

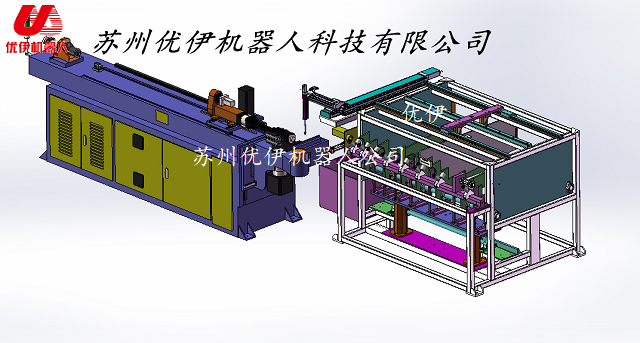

Loading and Unloading Machine (3-axis servo) for Tube Bender

UE ROBOTS

Technical index of pipe processing

1) Pipe material 304, 439, 409

2) Fitting length: 80mm-1000mm

3) Pipe diameter Ø10, Ø12, Ø14, Ø19, Ø19.5

4) Pipe wall thickness: 1.5mm

5) Pipe positioning: fixed edge positioning

6) Unloading method: pneumatic or servo unloading

7) Suitable for automatic loading and unloading of small pipe fittings

Introduction to system action flow:

1) Manual feeding to the feeder bin

2) The feeder ejects and separates out a single pipe fitting, and then it is unilaterally positioned after welding seam inspection

3) The XYZ truss servo motor feeding system grabs the pipe fittings to the pipe bender for feeding;

4) After the bend is finished, the cylinder blanking gripper will grab it

5) The gripper cuts the material to the bin

Repeat the above actions to form automated production.

管材加工技术指标

1) 管材材304 、439、409

2) 管件长度：80mm-1000mm

3) 管径 Ø10、Ø12、Ø14、Ø19、Ø19.5

4) 管材壁厚：1.5mm

5) 管材定位：定边定位

6) 卸料方式：气动或伺服下料

7）适合小管件自动上下料制作

系统动作流程简介：

1) 人工上料到上料机料箱

2) 上料机顶料、分料出单根管件，然后经焊缝检测后再单边定位

3) XYZ桁架伺服电机上料系统抓取管件至弯管机上料；

4) 弯管结束后，气缸下料抓手进行抓取

5) 抓手下料到料箱

重复以上动作，形成自动化生产。
