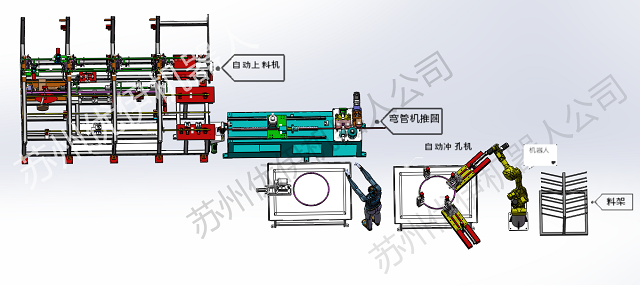

Auto Cell of Push-bending Machine

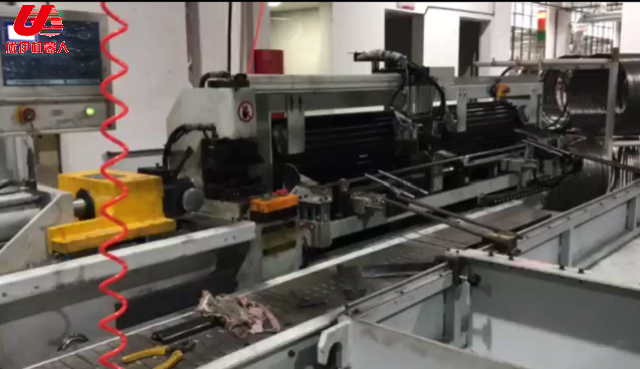

  Tube shrinking and feeding machine

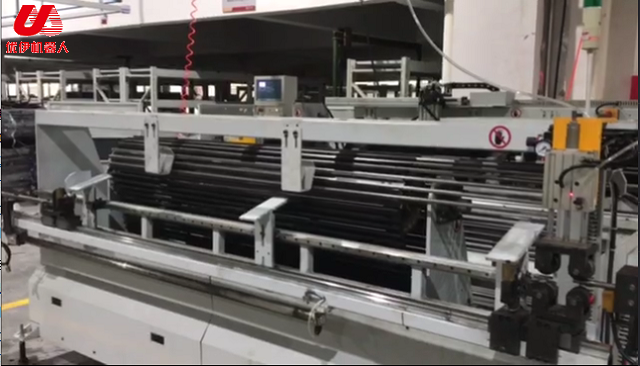

Auto feeding machine of push bender

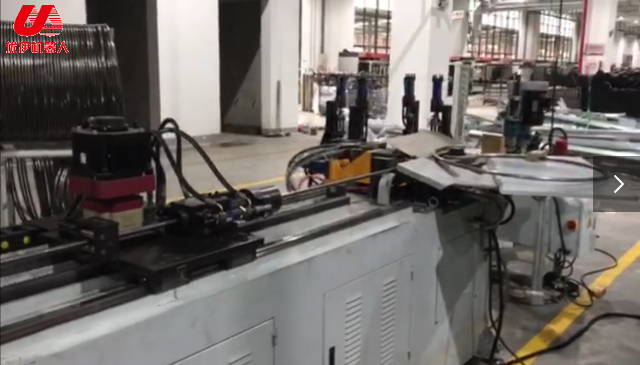

The Tube is Pushed Bending Circle

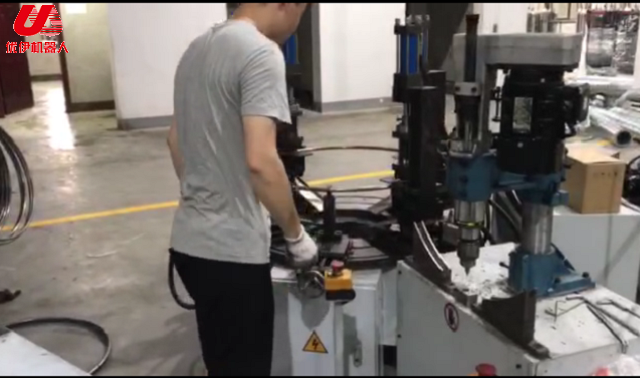

The worker puts the circle pipe on the drilling & punching sets

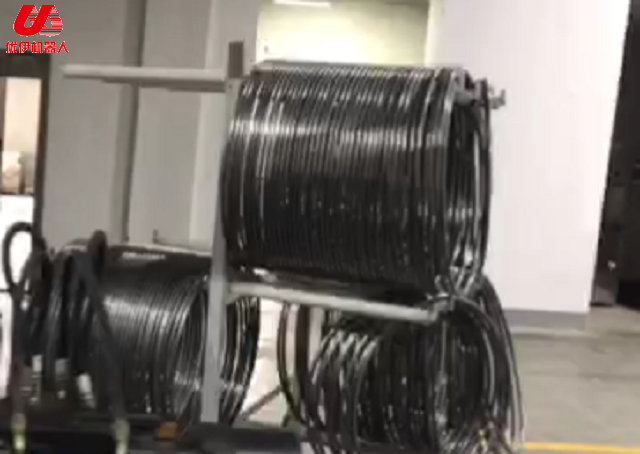

 Round pipe fittings

缩管机弯管机推圆自动生产线

苏州优伊机器人公司制造

需要更详细资料和视频的请电

189-6226-9900

The Main Fertures

A) First of all, the batch of straight pipes are put into the silo of automatic feeding machine

B) The pipe shrinking machine is used to shrink the pipe. After the pipe shrinking is completed, the material is automatically fed to the feeding machine bin of the pipe bending machine (the simplified version can directly enter the waiting area of the bending machine)

C) The automatic feeding machine of the pipe bender connects the head and tail of the pipe fittings for continuous round pushing operation

D) Workers put the completed round pipe into drilling and automatic punching machine for operation (semi-automatic operation)

E) It can save 2-3 labor and reduce labor intensity

F) The bending machine has high precision and screen digital control circle pushing radius

缩管机弯管机推圆生产线工作原理和特点：

A）人工首先将批量直管放入缩管机自动上料机料仓

B）缩管机进行缩管作业，缩管完成后自动下料至弯管机上料机料仓（精简版可以直接进入弯管机待料区）

C）弯管机自动上料机将管件头尾相连进行连续的推圆作业

D）工人将完成圆形管件放入钻孔和自动冲孔机进行作业（半自动作业）

E）节省人工2-3两人，同时工人的劳动强度降低

F）弯管机伺服推圆精度高，屏幕数字控制推圆半径
