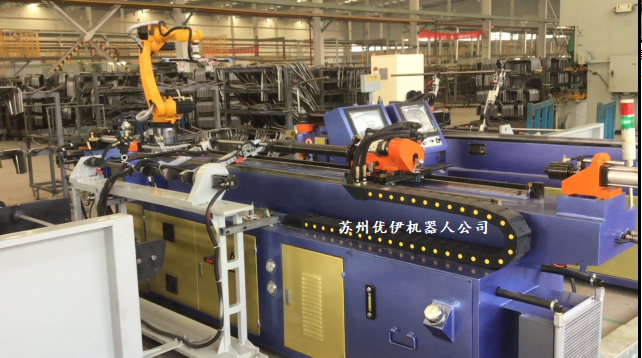

Automatic Production Line of Pipe Bender

Automatic Production Line of Pipe Bender

Equipment Features:

A. Pipe bender model: Hefeng mechanical automatic pipe bender 38cnc-3a-2s two sets;

B. Automatic feeder: ue-sl-ad3000, suitable for pipe length: 200-3000mm, pipe diameter: 16-80mm

C. Robot model: eston 16KG load 6-axis industrial robot

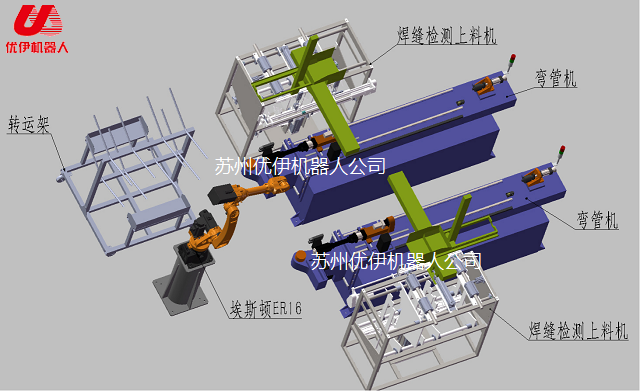

4. Two automatic feeding machines feed the pipe bender automatically, and one robot carries out palletizing operation for two bending machines at the same time

D. The whole process of PLC control, touch screen human-machine interface, the overall efficiency improved

E. Automatic identification of pipe weld is configured to identify and locate the pipe weld, so that the pipe bender can avoid the weld

F. Using industrial robot to carry out cutting, handling and palletizing

G. Save labor significantly, increase the competitiveness of enterprises

设备特点：

A、弯管机型号：全自动弯管机 38CNC-3A-2S 两台；

B、自动上料机：UE-SL-AD3000，适合管长：200-3000mm，管径：16-80mm

C、机器人型号：埃斯顿16kg负载，6轴工业机器人

D、两台自动上料机各自对弯管机自动喂料，一台机器人对两台弯管机下料作业并同时进行码垛作业

E、全程PLC控制，触摸屏人机界面，效率整体提高

F、配置自动识别管材焊缝，对管件进行焊缝识别和定位，使弯管机避开焊缝

G、采用工业机器人进行下料搬运码垛

H、投入自动化资金不高，昼夜开机效率高，收回投入快，节省人工显著，增加企业竞争力
