Project description:

The user's existing two pipe benders are required to form an automated production line with robots responsible for feeding and unloading. The pipe bender is a Taiwan Hehe mechanical pipe bender, model: CNC25-3A, multi-layer mold, configuration 2 An automatic feeder from Suzhou Youyi Robot Co. Ltd. is equipped with a pipe welding seam detection system, which can perform welding seam positioning processing for user pipe fittings. The OTC 8kg robot is used to load and unload the two pipe benders.

Main Features

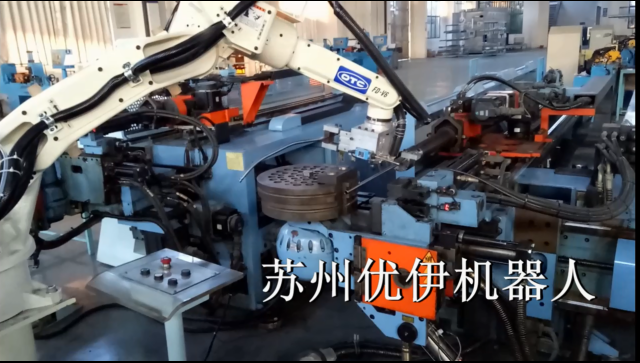

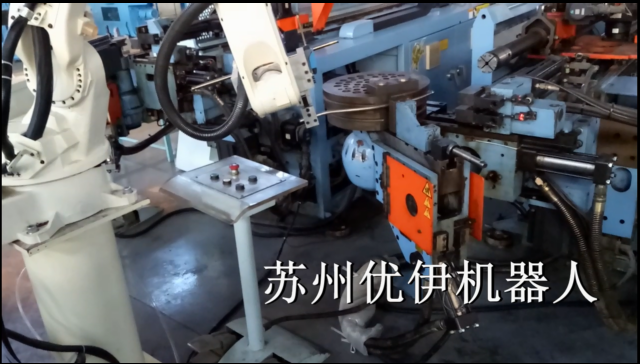

1) A Japanese OTC robot carries out loading and unloading of pipe fittings;

2) Two Taiwanese Hehe pipe bending machines (CNC 25-3A) for pipe bending production;

3) Two pipe feeding machines of Suzhou Youyi Robot, splitting and feeding;

4) A master control cabinet for master control and adaptive control of each device;

5) Welding seam detection system, positioning after pipe welding seam detection (optional);

6) Range of tube length: 300-1000 (length can be customized);

7) Pipe diameter range: 12-80 (range can be customized).

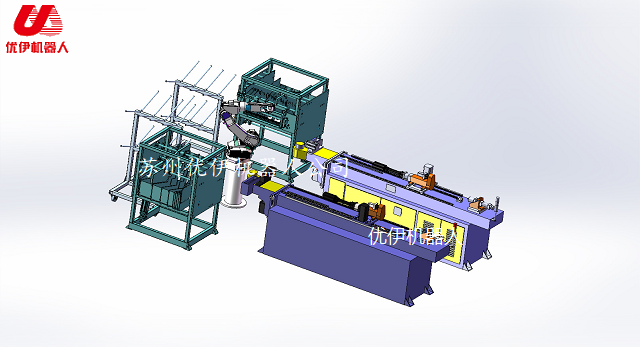

SOCO Pipe Bender and OTC Robot Auto Work Cell

UE ROBOT

项目说明：

用户现有的两台弯管机要求组成由机器人负责上料和下料的自动化生产线，弯管机为台湾和和机械弯管机，型号：CNC25-3A，多层模，配置2台苏州优伊机器人公司自动上料机，上料机上配有管材焊缝检测系统，可以对用户管件进行焊缝定位处理。选用OTC 8kg机器人，负责对两台弯管机的上料和下料。

主要特征和指标：

1）一台日本OTC机器人对管件进行上下料搬运；

2）两台台湾和和弯管机（CNC 25-3A），进行弯管生产；

3）两台苏州优伊机器人的管材上料机，分料和上料；

4）一台总控柜，对各设备进行总控，自适应控制；

5）焊缝检测系统，管件焊缝检测后定位（选配）；

6）管长范围：300-1000（可定制长度）；

7）管径范围：12-80（可定制范围）。
